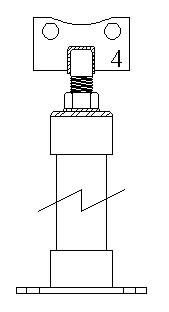

Standon Model S89 Flanged Adjustable Pipe Support
The Standon model #S89 flanged pipe support is ideal for use on
backflow devices and large water meters.
It is perfect for retrofitting existing
installations and replacing ill fitting concrete
blocks & etc., with adjustable, quality pipe supports.
- Bolts directly to the flange.
- Accepts standard IPS pipe - No threading required.
- Comes complete with anchorable base plate.
- Laser cut steel for guaranteed fit every time.
- Available in sizes 2" through 48" - Class 125 flanges.
- Also available in 100% 304 Stainless Steel
MATERIAL |
Flange Plate: |
ASTM A36 |
Collar/ Base Cups: |
ASTM A53 D.O.M. tubing |
Threaded Stud: |
ASTM A36; rolled thread Grade ASTM A307 |
Base Plate: |
ASTM A36 Sheet Steel - .25" plate |
Optional Material: |
100% 304 Stainless Steel |
FABRICATION |
All welds: |
100% MIG welding, electrode E70XX |
Plates: |
Laser cut, programmed dimensions, radiused corners |
FINISH |
All pipe supports have a corrosion resistant, electro galvanized
finish. Optional finshes available as required. |
DIMENSIONS
SUPPORT SIZE |
HOLE RADIUS |
FLANGE PLATE |
THREAD STUD |
BASE PLATE |
EXTENSION PIPE REQ'D |
MINIMUM DIST. TO FLOOR |
2" |
2.375" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
2½" |
2.75" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
3" |
3.00" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
4" |
3.75" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
6" |
4.75" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
8" |
5.87" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
10" |
7.125" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
12" |
8.50" |
.250" |
1" x 6" |
4"x6"x¼" |
2" SCH. 40 |
7" |
14" |
9.375" |
.375" |
1½" x 6" |
8"x8"x½" |
3" SCH. 40 |
9.5" |
16" |
9.625" |
.375" |
1½" x 6" |
8"x8"x½" |
3" SCH. 40 |
9.5" |
18" |
11.375" |
.375" |
2" x 6" |
8"x8"x½" |
4" SCH. 40 |
10" |
20" |
12.50" |
.375" |
2" x 6" |
8"x8"x½" |
4" SCH. 40 |
10" |
24" |
14.75" |
.375" |
2" x 6" |
8"x8"x½" |
4" SCH. 40 |
10" |
|
